![6" LED Square Outdoor Wall Mount Fixture](/vendors/149/large/p5643_30-30k.jpg "6" LED Square Outdoor Wall Mount Fixture")
Part Number: P5643-30-30K / Vendor ID #: 149

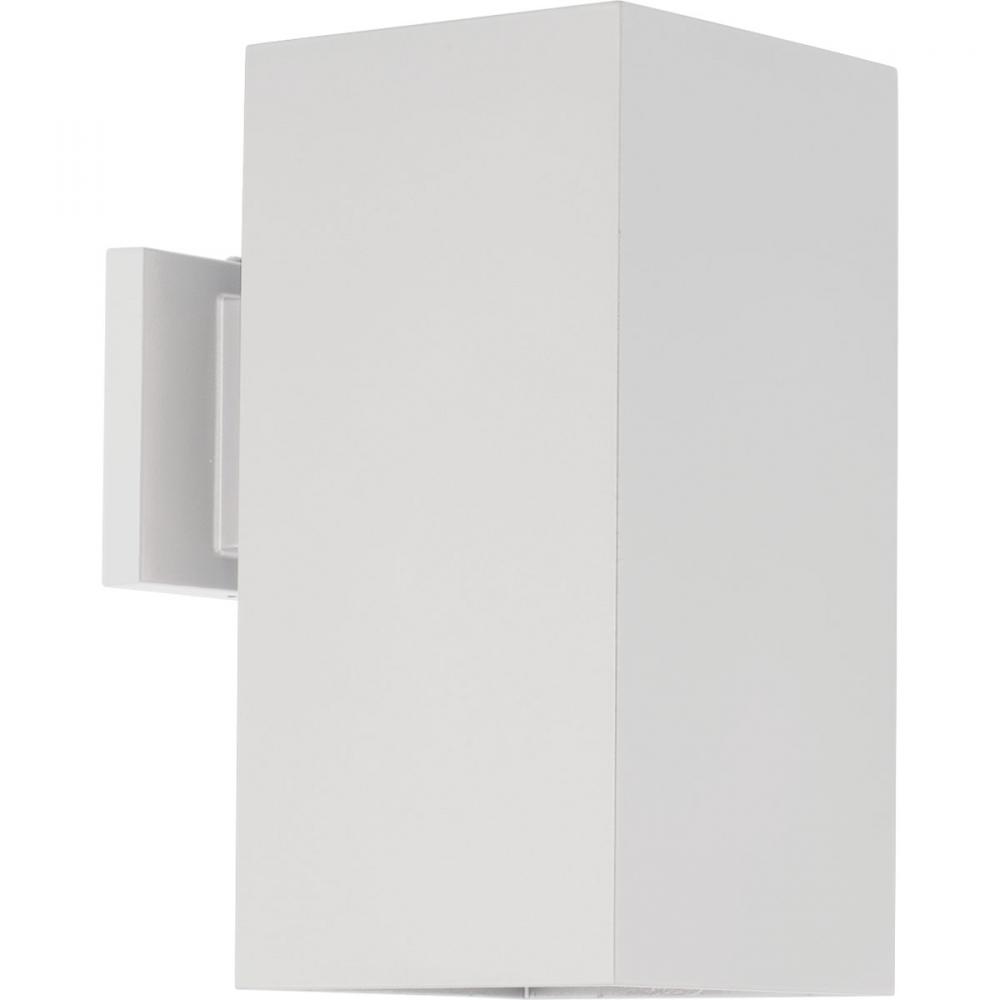

6" LED Square Outdoor Wall Mount Fixture
by Progress
Call for Price
Item Sales Info
Add To Wishlist
Compare Item
Email
Print
Availability
Manufacturer has 45 items available.
Dimensions
Height: 12.00"
Width: 8.88"
Length: 6.00"
Info & Guides
Included Items
- Bulbs: (1) x 29 Watt LED
Finish: White
Family: LED Sq Cylinder
6" LED Square Cylinder with heavy-duty aluminum construction, die-cast aluminum wall bracket. UL listed for wet locations. Powder coat for chipping and fading resistance. Dark Sky compliant for down light only. The P5643 is ideal for indoor/outdoor applications. It can be used in residential or light commercial installations. White finish.
Category:
Exterior
Subcategory:
Wall Lanterns
Finish:
White
Style:
Contemporary
Transitional
Option:
Dark Sky
Energy Efficient
Energy Star
Title 24
Outdoor
Wet Rated
LED
Title 20
Voltage:
100-120
Lumens:
450-800
Mount Type:
Flush Mount
Kelvin:
2501-3000
Location Rating:
Wet Rated
Category:
Outdoor
Finish:
White
Style:
Modern;Transitional
Option:
Dark Sky
Energy Efficient
Title 20
Title 24
Wet Rated
Family:
LED Sq Cylinder
Voltage:
120
Number of Bulbs:
1 Bulbs
Bulb Hours:
60000
Bulb Type:
LED
Height To Center of Outlet:
7.50
Introduction Date:
01/16/2017
Kelvin:
3000
Keyword(s):
flush mount;ceiling fixture;ceiling light;led light;energy efficient
Length:
6.00
Lumens / Light Output:
1864
Material:
Die-Cast Aluminum
Ship Carton Height:
14.96
Ship Carton Length:
11.80
Ship Carton Width:
9.06
Ship Weight:
6.53
Special Features:
White finish.;Ideal for a wide variety of interior and exterior applications.;Die-cast aluminum construction with durable powder coated finish;1864 lumens 64 lumens/watt per module (delivered);3000K color temperature, 90+ CRI;Dimmable to 10% with many ELV
Vendor Ship Method:
Non UPS Shippable False
Warranty:
5-year Limited
Weight:
6.43
Wire Included:
6 in
Americans with Disabilities Act:
No
Bulb CRI:
90 CRI
Bulb Included:
Yes
Can be Mounted Up or Down:
No
Canopy Shape:
Square
Certified Listed Location:
Wet Location Listed
Construction Material Main Part:
Construction
Convertible Fixture Includes Both Mounts:
FALSE
Country of Origin:
CN
Dark Sky:
Yes, per photometry (not registered with IDA)
Design Series:
No
Dimming Compatability:
Lutron_Diva DVELV-300P;Lutron_Nova_T NTELV-300;Lutron_Maestro MAELV-600
Dimming Protocol:
ELV/Reverse Phase
Dimming Range:
10%
Energy Efficient:
Yes
Energy Star:
No
Finish Type:
Painted
Frequency Rating:
60 Hz
Grounded Convenience Outlet included:
No
JA8:
No
Lamp Type Actual:
LED
Lamp Type Basic:
Solid State
Lamp Wattage:
29
Lumens per Watt:
64.00
Mount Location:
Wall
MTO:
No
Operating Temperature Celcius Max:
30 °C
Prop 65:
View
Prop 65 Description:
View
Room Type:
Outdoor
Safety Rating:
cULus
Starting Temperature Minimum:
-30 °C
Sub Brand:
Progress LED
Title 20:
Yes
Title 24:
Yes
Weight of Fixture Exceeds NEC Limits:
No
Width Diameter:
6 in Depth
Manufactured By:
Progress
