Part Number: 62/1752 / Vendor ID #: 81

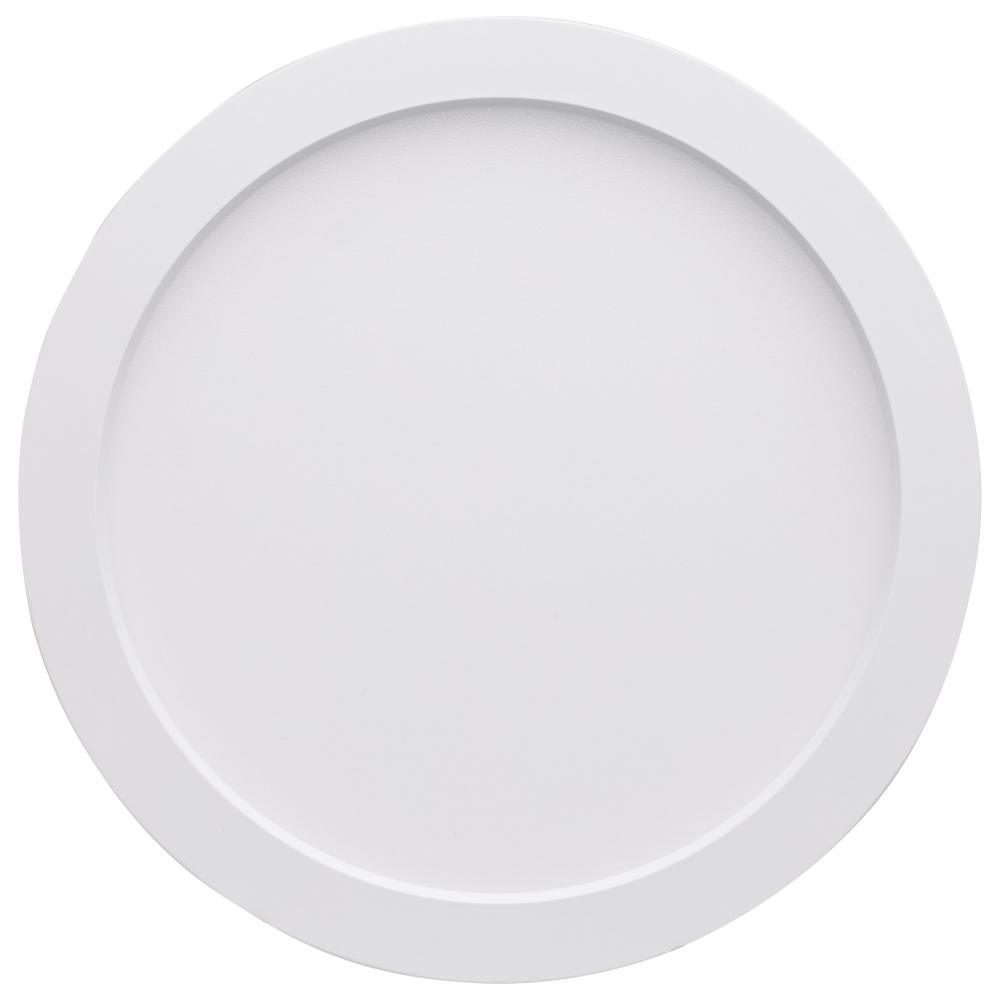

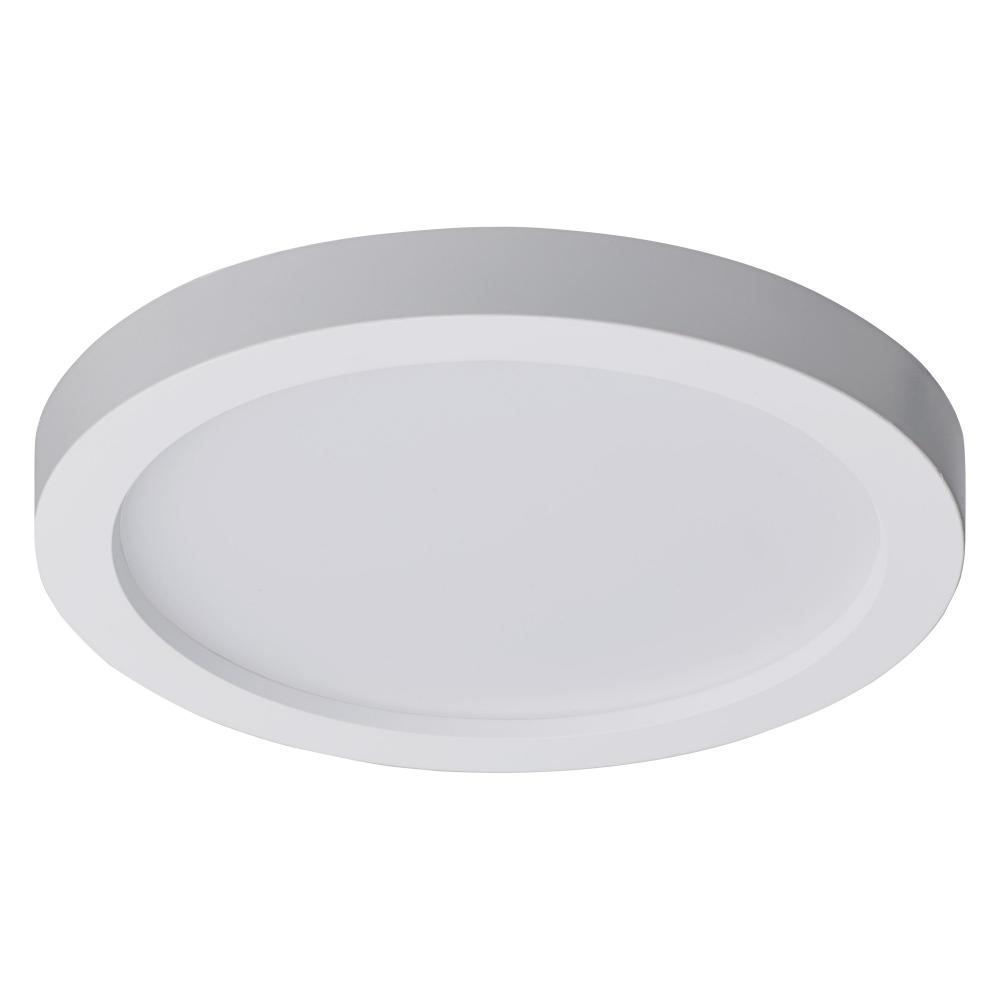

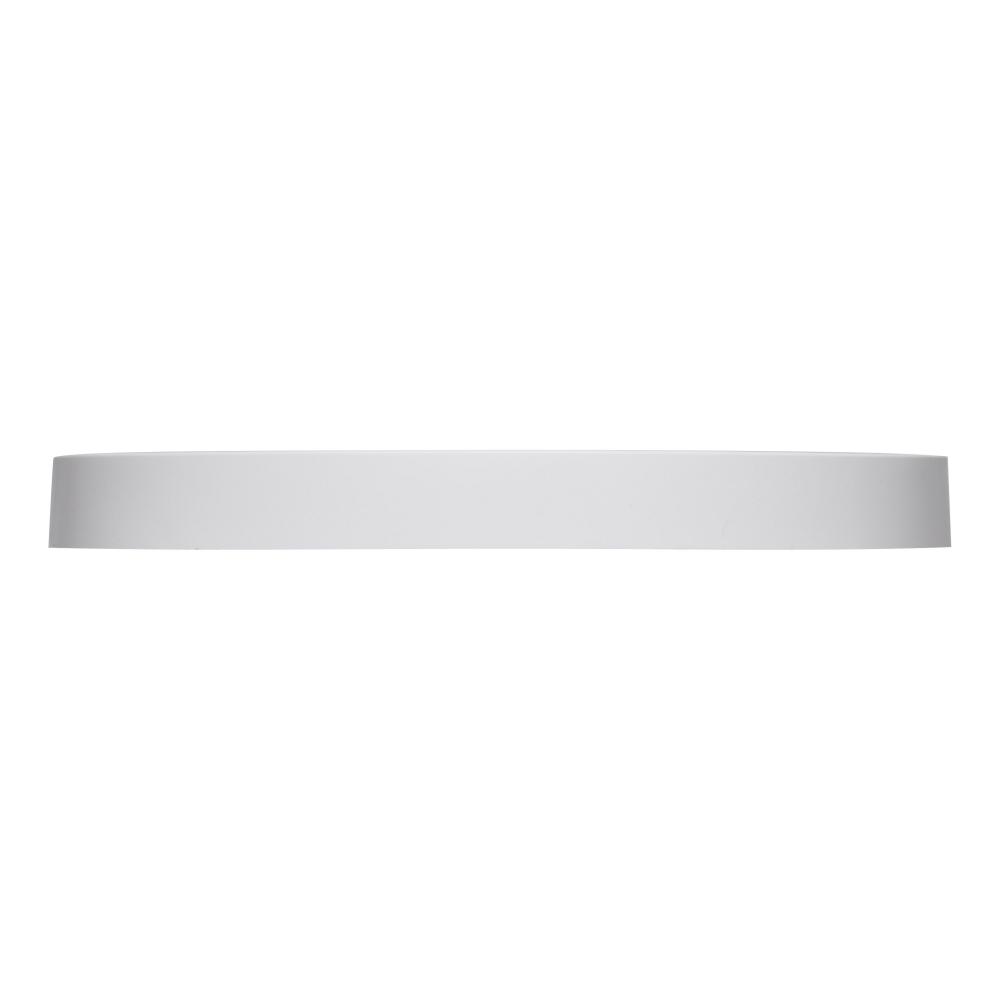

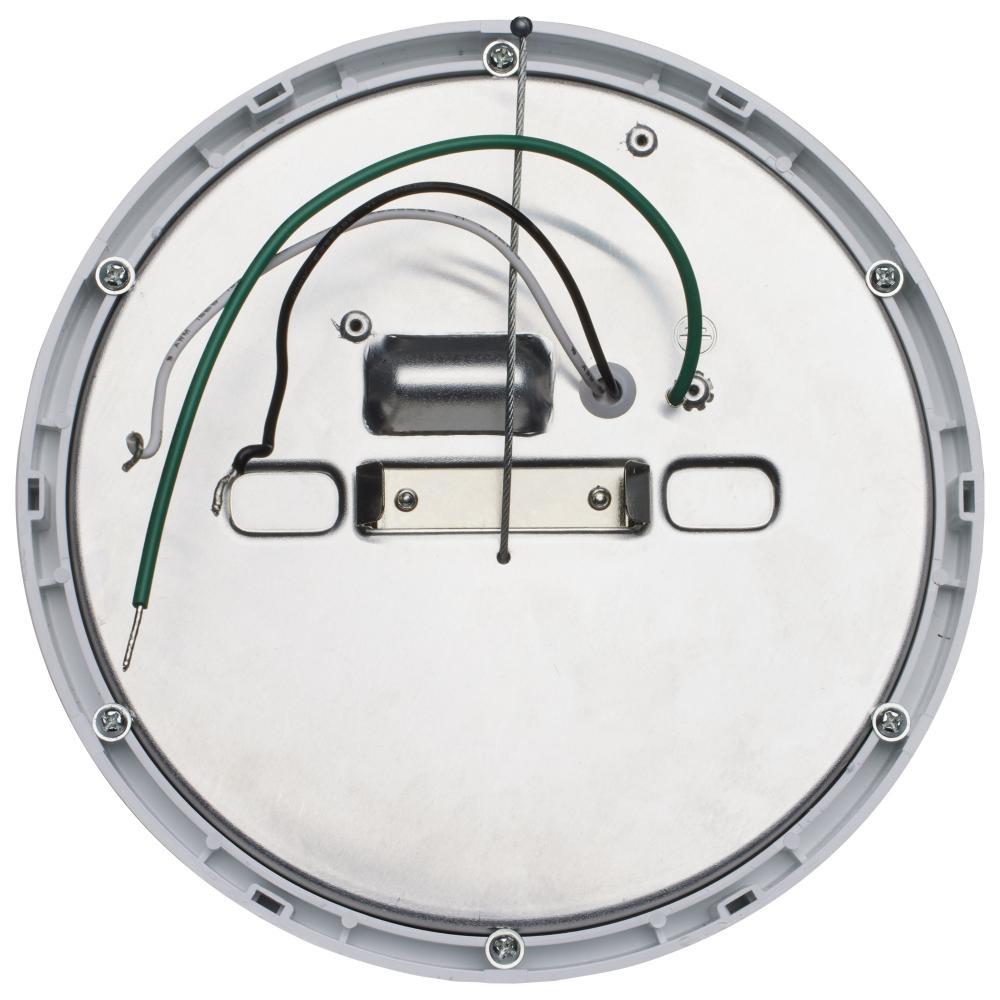

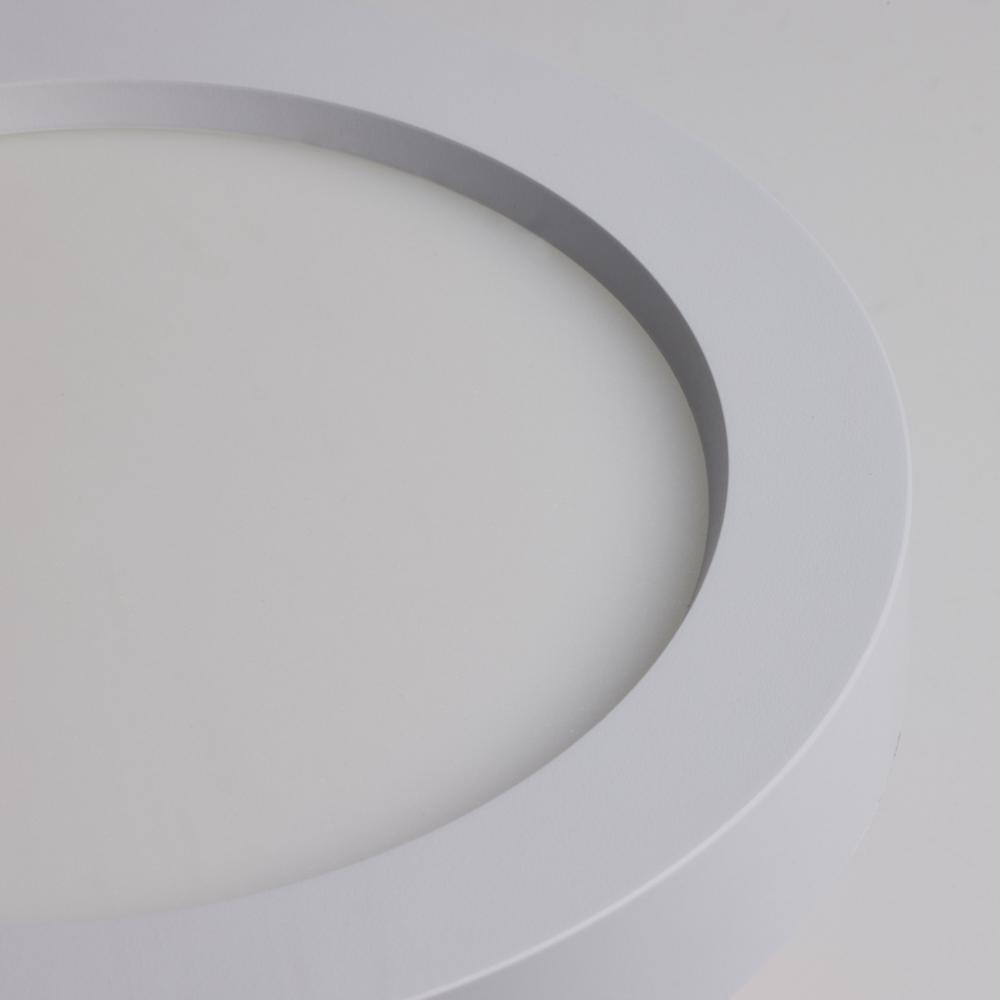

7 Inch; LED Flush Mount Fixture; Surface Mount; Round; 16 Watt; 3000K; White Finish; 6pk
by Nuvo
Call for Price
Item Sales Info
Add To Wishlist
Compare Item
Email
Print
Availability
Manufacturer has 571 items available.
Dimensions
Height: 0.71"
Width: 7.01"
7 Inch; LED Flush Mount Fixture; Surface Mount; Round; 16 Watt; 3000K; White Finish; 6pk
Category:
Flush Mounts
Subcategory:
Other Flush Mounts
Style:
Contemporary
Option:
Energy Star
LED
Prop 65
Lumens:
801-1100
Kelvin:
2501-3000
Category:
Close-to-Ceiling
Sub Category:
LED Disk
Style:
Contemporary
Avg Rated Hours:
50000
Bulb Shape1:
Integrated LED
Bulb Type1:
LED
Color Temperature:
Soft White
Diameter:
7.01
Dimmable:
Yes-Dimmable
Each Height:
7.87
Each Length:
11.02
Each Width:
7.68
Lumens:
900L
Tariff Code:
8539.52.0091
Warranty:
5 Year Limited - Fixtures
Amps:
0.145A
ANSI Base:
Integrated
Beam Angle:
110
CA Prop-65:
Lead
CCT Selectable:
No
CEC:
California T24 2016 - 2022 JA8 Listed
CEC Terse:
Lawful for sale in California
CEC Web Text:
California T24 Listed
Country Of Origin:
China
CRI:
90+
Dimmable Down To:
100 to 10 percent
Dimming Type:
Forward Phase or Reverse Phase or Phase Selectable
Each Cube:
0.3855
Each Quantity:
1
Efficacy:
56.25 LPW
ES Category:
Downlight Surface Mount
ES Unique ID:
ESID-2404052
FCC Compliant:
Yes
Feature 1:
Diameter: 7.01 inches, Height: 0.71 inches
Feature 2:
Dimmable
Feature 3:
FCC Compliant
Feature 4:
3000K CCT
Feature 5:
Rated for 50,000 hours
Feature 6:
Wet location rated for indoor use
Feature 7:
Suggested Applications: Kitchens, bathrooms, hallways, and offices
Feature 8:
5-Year warranty
Feature 9:
Sold in a pack of 6
Finish Family:
White
Fixture shape:
Round
Incandescent Equivalent:
75W

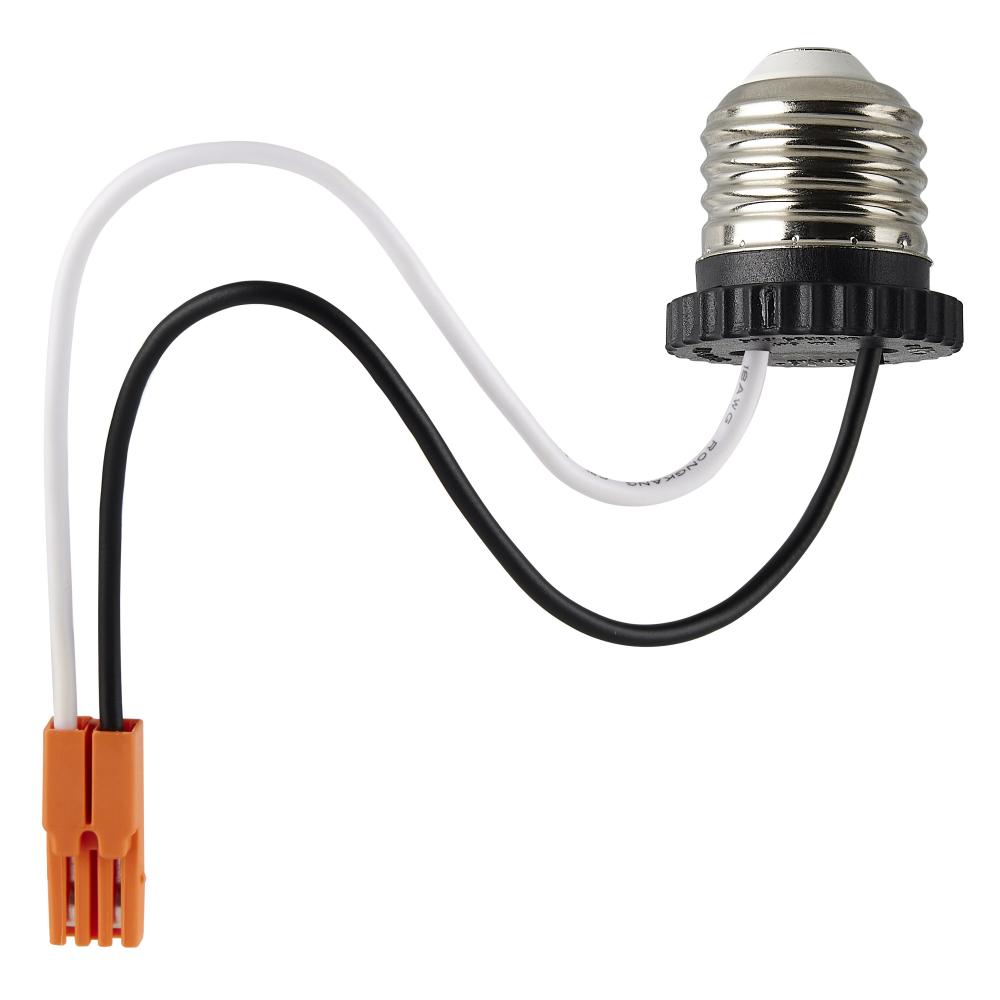

Includes:
E26 adaptor
Indoor Outdoor:
Indoor
IOT Enabled:
No
JA8 Compliant:
Yes
Lens Material:
Polycarbonate (PC)
Long Description:
Nuvo's 62-1752 7 inch LED Surface Mount Downlight is the contractor's choice for residential, multi-family and commercial applications. Perfect for residential and commercial applications, this dimmable downlight illuminates kitchens, bathrooms, ha
Material:
Polycarbonate (PC)
Mounting Procedure:
Ceiling
Operating Frequency:
60Hz
Operating Temp:
-20C (-4F) to +40C (+104F)
Pack Type:
Contractor Box
Power Factor:
0.91
Quantity In Pack:
6
R9 Value:
52
Replaceable Light Source:
No
RoHS Compliant:
Yes
Romance Copy:
Satco/Nuvo's sleek Surface Mount Downlights are the contractor's choice for residential, multi-family and commercial applications. Offered in 5 inch or 7 inch sizes in a single 3000K CCT, these contractor packs are an excellent value for larger job
Safety Listing:
cETLus - Listed
SDS class:
LED_Fixture
Short Description:
LED 7" ROUND SURFACE MOUNT 16W
Temperature (CCT):
3000K
Title 20 Compliant:
No
Title 24 Compliant:
Yes
Wattage Selectable:
No
Weight Lb.:
1.32
Manufactured By:
Nuvo
