Product Overview

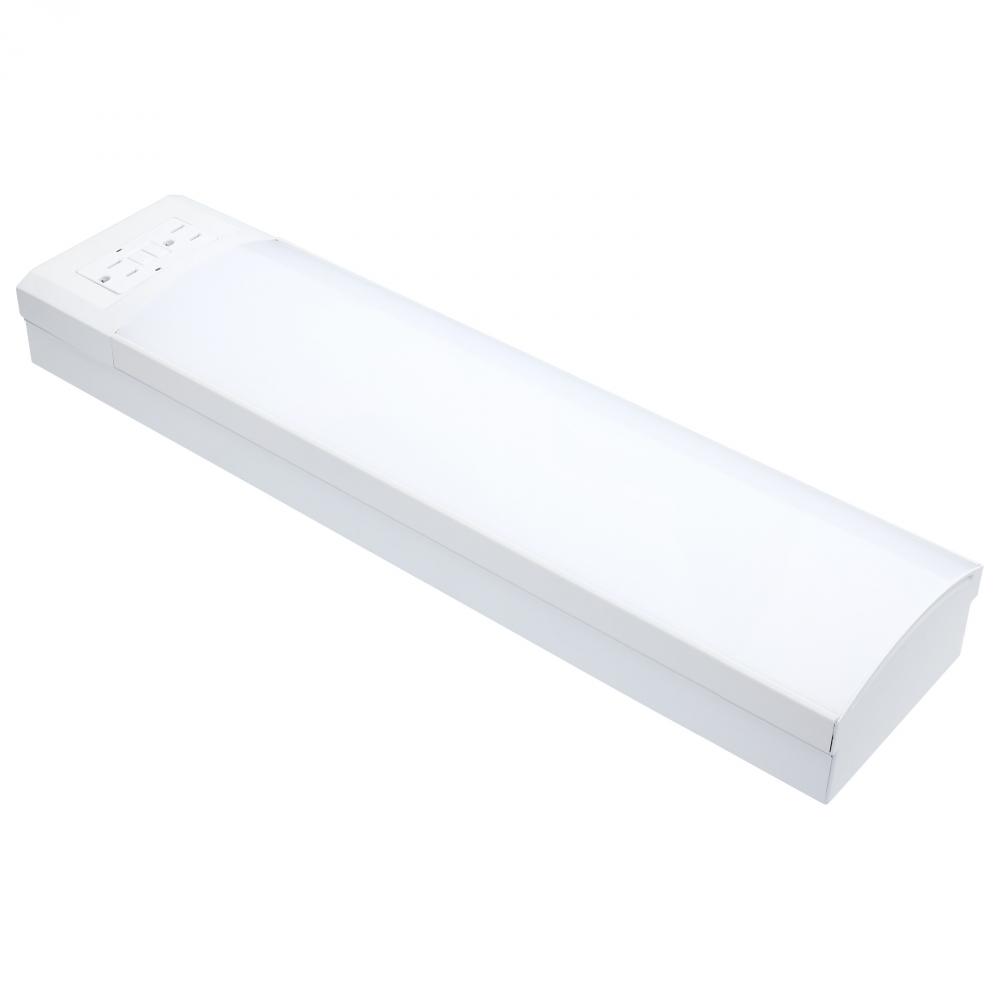

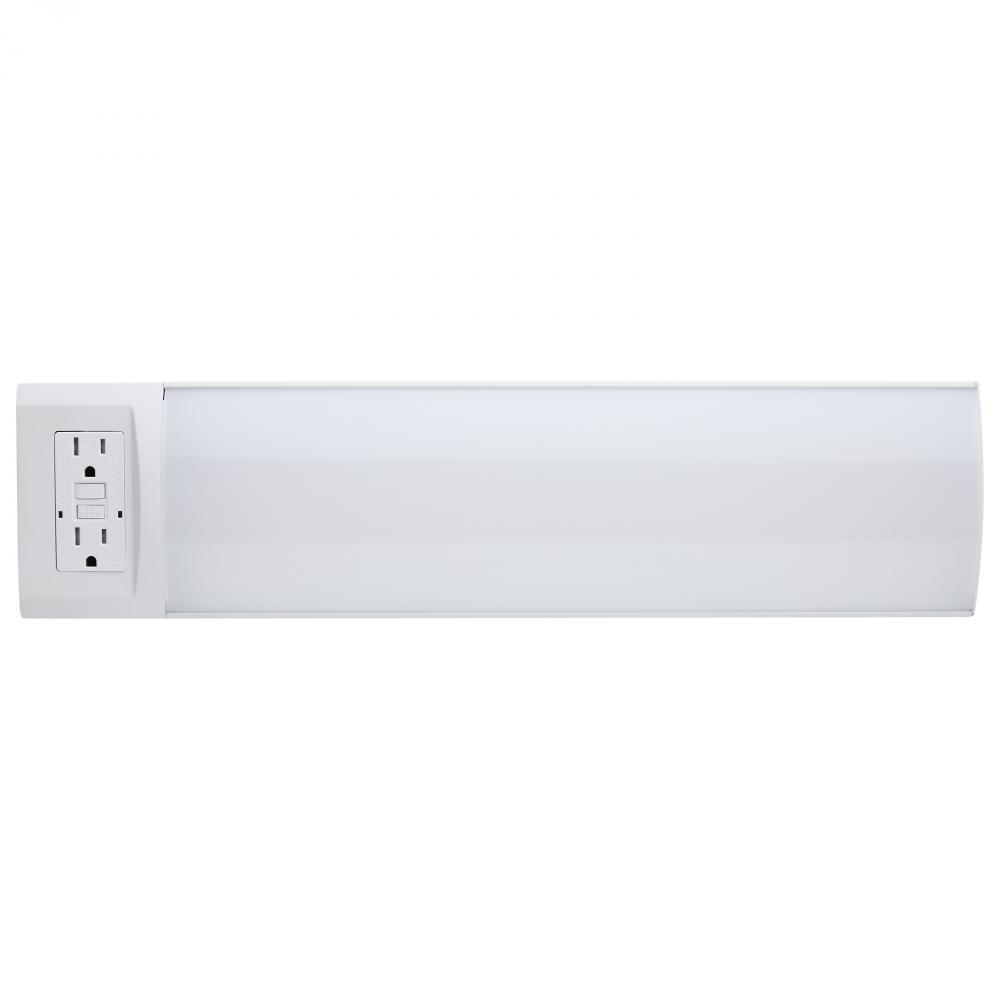

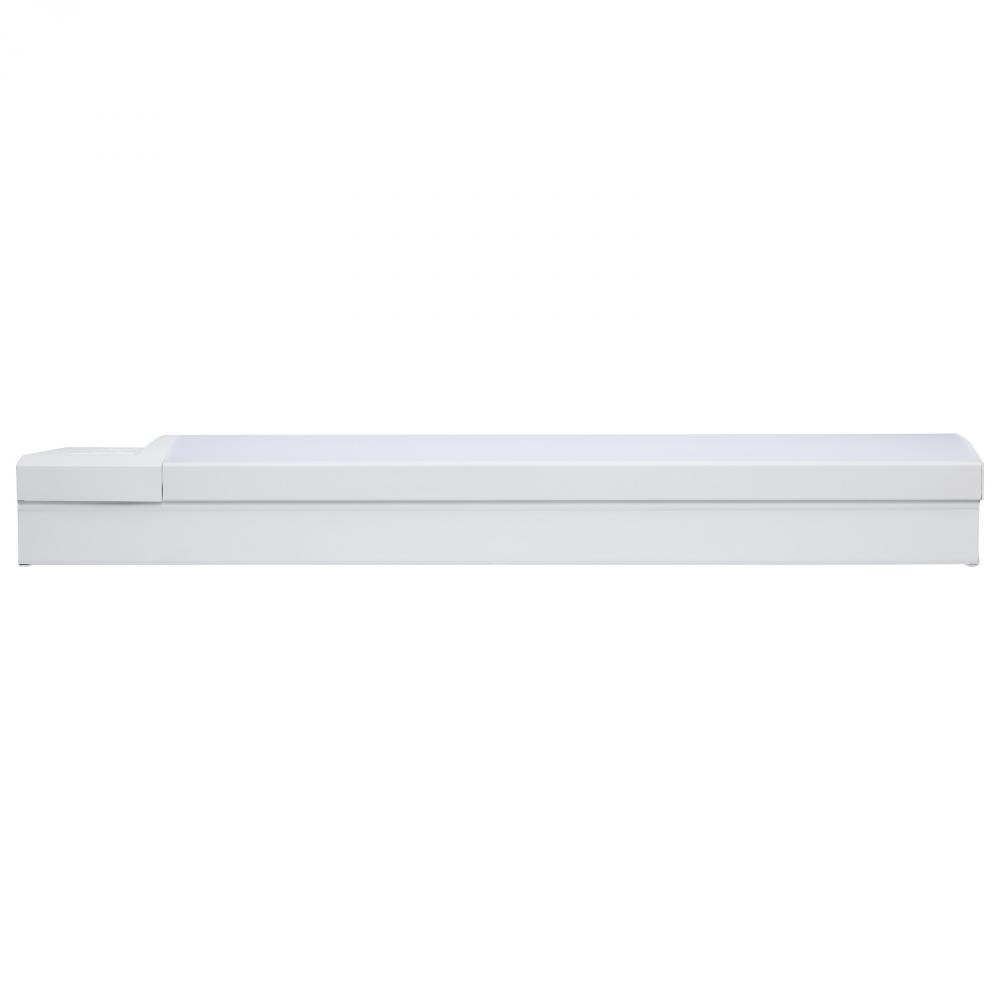

14 Watt 18 Inch LED Ceiling Wrap; Dual GFCI; 27K/30K/35K/40K/50K CCT Selectable

Standard Information

Category:

Undercabinet

Subcategory:

Strip Lights

Option:

LED

Prop 65

Refinement Options

Category:

Linear Strip

Sub Category:

Wrap Fixture

Bulb Volts1:

120V

Additional Info:

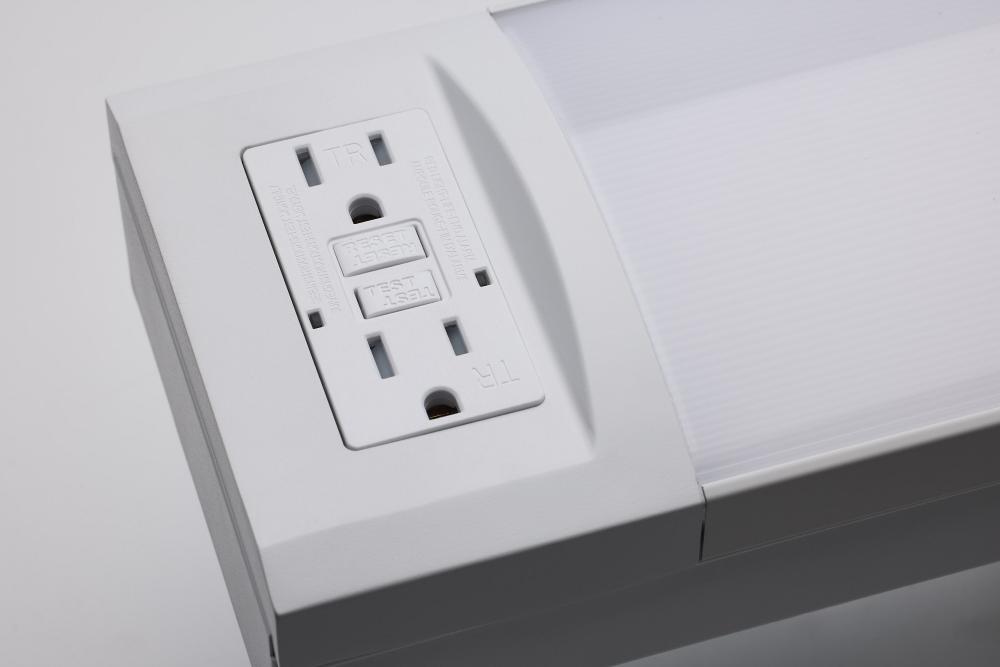

Tamper Resistant Dual GFCI Outlet with 15 amp circuit with 14 gauge wire; 0.025 second GFCI Trip Time; The outlet is front facing, It has an easy to read diagnostic indicator; Built in protection against shock; Most used application for this product would

Avg Rated Hours:

50000

Bulb Shape1:

Integrated LED

Bulb Type1:

LED

Color Temperature:

Warm White to Natural Light

Dimmable:

Non-Dimmable

Each Height:

4.65

Each Length:

18.31

Each Width:

2.76

Length:

18

Lumens:

1298L-1391L

Tariff Code:

9405.11.6010

Warranty:

5 Year Limited - Fixtures

Amps:

0.117A

ANSI Base:

Integrated

Beam Angle:

110

CA Prop-65:

Lead

CCT Selectable:

Yes

CEC:

T20 Exempt - Fixtures Not Regulated

CEC Terse:

Lawful for sale in California

CEC Web Text:

Lawful for sale

Country Of Origin:

China

CRI:

90

Each Cube:

0.136

Each Quantity:

1

Efficacy:

92.71-99.36 LPW

FCC Compliant:

Yes

Feature 1:

Integrated 15-Amp Convenience Outlets

Feature 2:

5 CCT Selectable

Feature 3:

90 CRI High Quality Light

Feature 4:

ADA Compliant

Feature 5:

Tamper Resistant Dual GFCI

Feature 6:

Damp location rated

Feature 7:

50,000 Hour Functional Life

Feature 8:

5 year warranty

Finish Family:

White

Indoor Outdoor:

Indoor

Installation Notes:

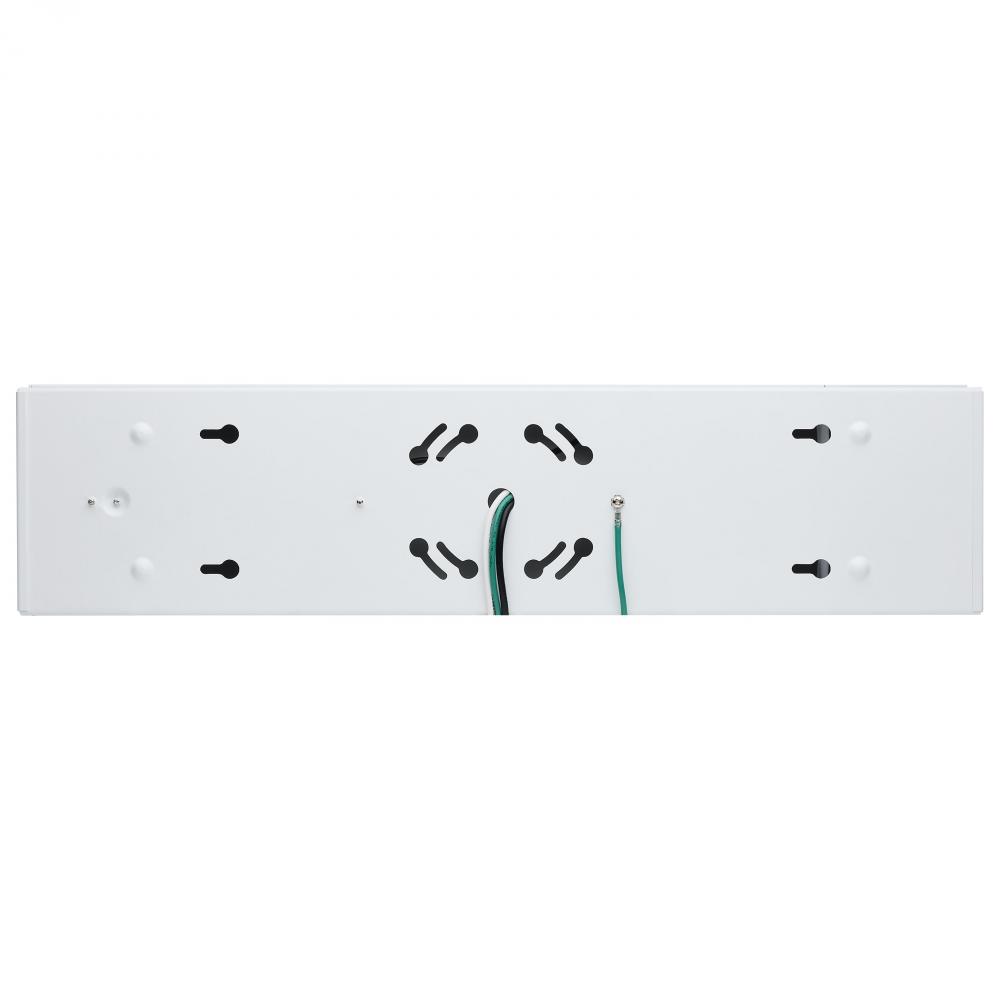

Standard 3-inch and 4-inch Keyhole Slots

JA8 Compliant:

No

Lens Finish:

White

Lens Material:

Polycarbonate (PC)

Long Description:

SATCO|NUVO's 18-inch LED Wrap Fixture delivers both illumination and power exactly where you need it. Perfect for workshops, apartment complexes, and multi-family dwellings, this fixture is ideal for areas where space is limited, and convenient power a

Material:

Steel

Mounting Procedure:

Ceiling/Wall

Operating Frequency:

60Hz

Operating Temp:

-20C (-4F) to +40C (+104F)

Order In Multiples Of:

1

Pack Type:

Box

Power Factor:

0.9

Quantity In Pack:

1

R9 Value:

65

Replaceable Light Source:

No

RoHS Compliant:

Yes

Romance Copy:

SATCO|NUVO's 18-inch LED Wrap Fixture delivers both illumination and power exactly where you need it. Perfect for workshops, apartment complexes, and multi-family dwellings, this fixture is ideal for areas where space is limited, and convenient power a

Safety Listing:

cETLus

Short Description:

LED 18" WRAP WITH DUAL GFCIS

Temperature (CCT):

2700K/3000K/3500K/4000K/5000K

Title 20 Compliant:

No

Title 24 Compliant:

No

Total Harmonic Distortion:

<30%

Wattage Selectable:

No

Weight Lb.:

2.35

Wire Gauge:

14
